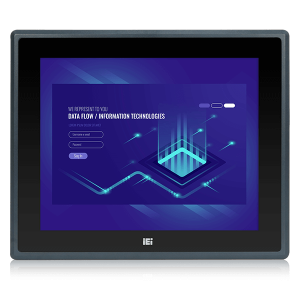

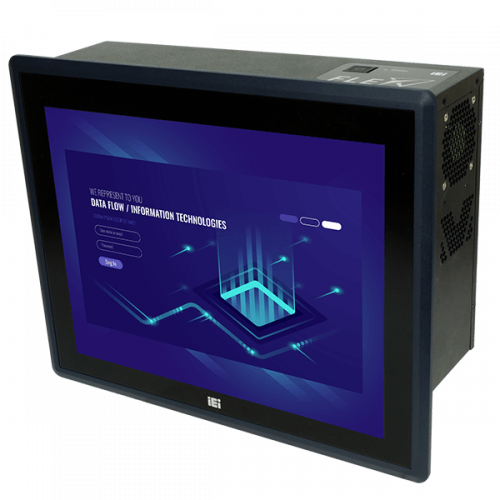

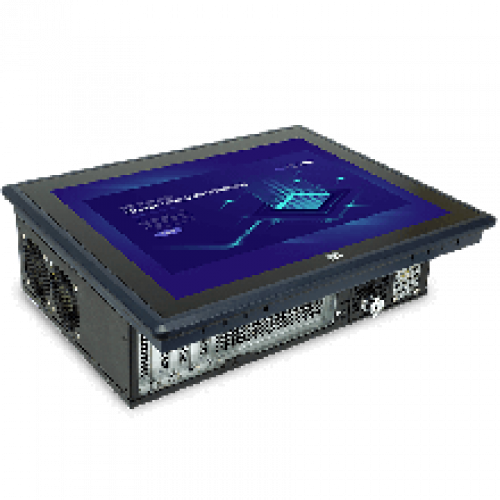

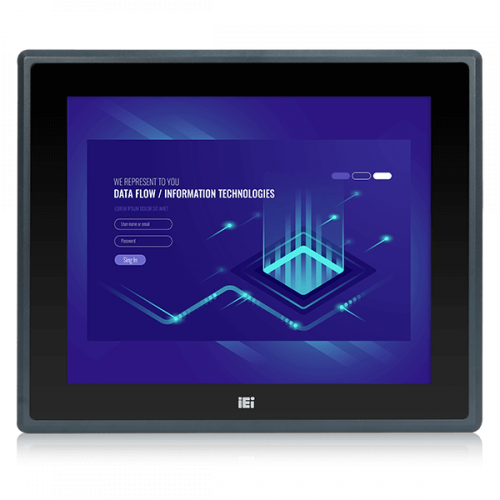

15” Intel® Coffee Lake panel PC
● 15” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor
● Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
● QTS-Gateway support
| Spec Item | Description |
|---|---|
| Form factor | |
| SBC Form Factor | Refer to SBC |
| I/O Interface | |
| I/O Ports | 4 x USB3.0
2 x LAN 1 x RS-232/422/485 2 x RS-232 1 x 8-bit digital I/O 2 x HDMI 1 x Line-out 2 x 802.11b/g/n (optional) |
| Expansion Slots | |
| Expansion Slots | 1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 2 x 2.5” SATA HDD bay(No RAID support) |
| Indicator&Buttons | |
| Buttons | Power switch |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | SECC |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 255 x 130 x 75 |
| Weight | |
| Weight | 2.2 kg/ 3kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C with air flow (SSD) |
| Humidity | 5% ~ 95%, non-condensing |
| Item No. | Description |
|---|---|
| ECN-360A-ULT3-i5/WD/4G-R10 | Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS |
| ECN-360A-ULT3-i5/4G-R10 | Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed,12V DC, RoHS |
| ECN-360A-ULT3-CE/WD/4G-R10 | Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS |
| ECN-360A-ULT3-CE/4G-R10 | Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 12V DC, RoHS |
