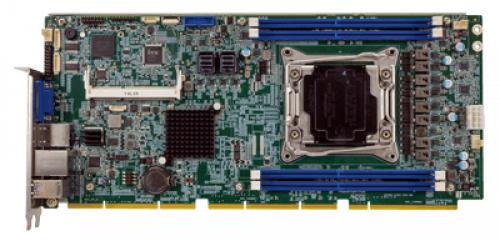

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS
● PEMUX full-size server / graphic grade solution
● LGA2066 Intel® Haswell processor supported
● Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM supports up to 256GB
● Supports IPMI VGA display.
● Supports M.2 2280 SSD
● Intel® PCIe GbE Intel® i210-AT with NCSI support
● Aquantia AQC107 10 GbE NIC
● Supports RAID function via SATA 6Gb/s
● TPM V2.0 hardware security function supported by TPM module
| Spec Item | Description |
|---|---|
| System | |
| CPU | LGA2066 socket supports Intel® Xeon W processor |
| Chipset | Intel® C422 |
| Memory | Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM |
| Memory Max. | 256GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 338.58 X 150.5 |
| Net Weight | 700g |
| Storage | |
| Storage | 8 x SATA :2 x SAS 8643 |
| 1 x M.2(NGFF) :2280 | |
| I/O Interface | |
| Display Output | 1 x VGA |
| Ethernet | 2 x LAN :LAN1: 1 GbE NIC: Intel® i210-AT with NCSI support
LAN2: 10 GbE NIC: Aquantia AQC107 |
| Audio | Description: 2 X 5 pin |
| I/O Interface | 2 x Internal RS-232 :2x9 pin, p=2.0 |
| 2 x External USB 2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 1 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0 | |
| Expansion | Description: 56-Lane PCIe signal via golden finger |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Supply | 5V/12V, Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 40°C |
| Humidity | 5% ~ 95%, non-condensing |
| Item No. | Description |
|---|---|
| PEMUX-XEW1-R10 | Full-size PEMUX CPU Card supports LGA-2066 Intel® Xeon® W processor, Intel® C422 chipset, DDR4 R-DIMM and LR-DIMM supported, IPMI VGA output, Intel® PCIe GbE, Aquantia 10GbE, USB3.0, USB2.0, SATA 6Gb/s(with mini SAS connector), and RoHS |
