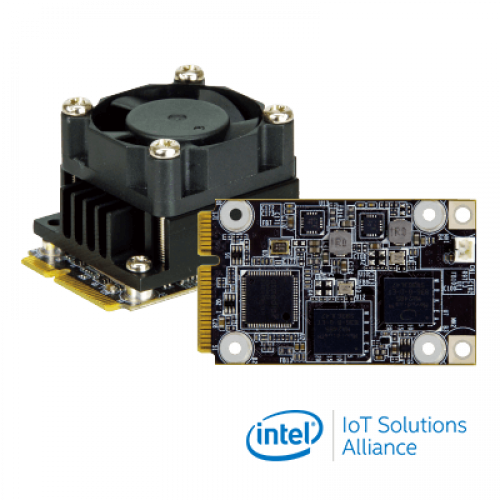

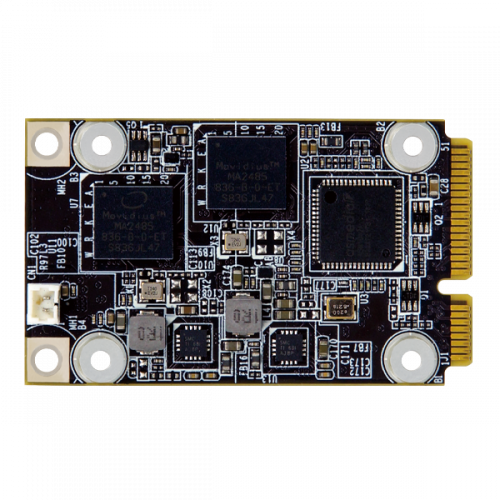

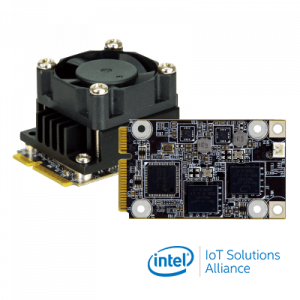

Computing accelerator card with two Intel® Movidius™ Myriad™ X VPU, providing a flexible AI inference solution
● miniPCIe form factor (30 x 50 mm)
● 2 x Intel® Movidius™ Myriad™ X VPU MA2485
● Power efficiency ,approximate 7.5W
● Operating Temperature -20°C~60°C
● Powered by Intel’s OpenVINO™ toolkit
| Spec Item | Description |
|---|---|
| System | |
| Chipset | 2 x Intel® Movidius™ Myriad™ X MA2485 VPU |

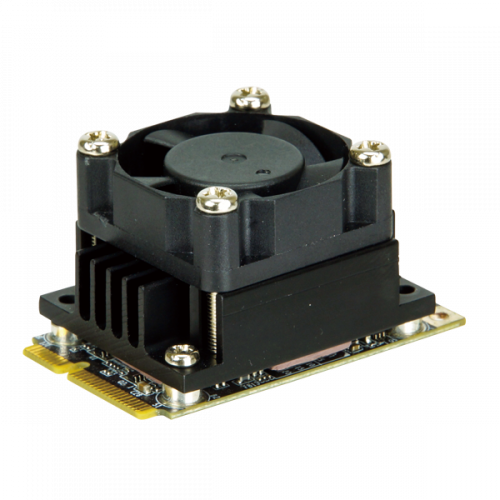

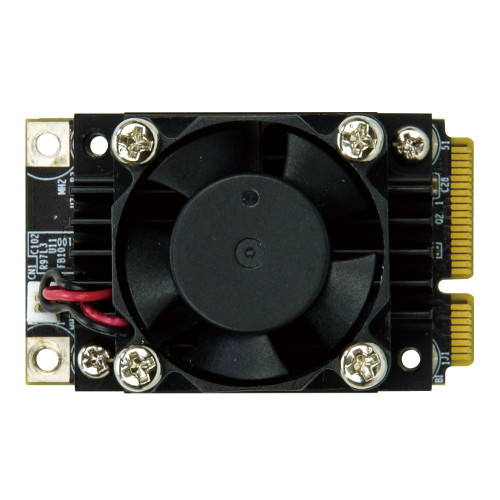

| Cooling method / System Fan | Active Heatsink |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 30 X 50 |
| Falt-tolerance | |
| LAN Bypass | miniPCIe |
| Power | |
| Power Consumption | Approximate 7.5W |
| Environment | |
| Operating Temperature | -20°C~60°C |
| Humidity | 5% ~ 90% |
| Item No. | Description |
|---|---|
| Mustang-MPCIE-MX2-R10 | Deep learning inference accelerating miniPCIe card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, miniPCIe interface 30mmx50mm, RoHS |
