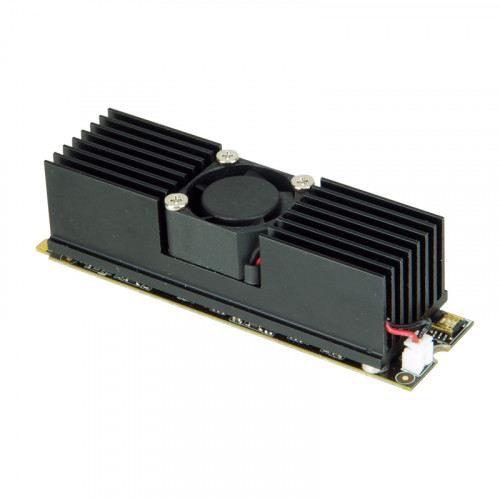

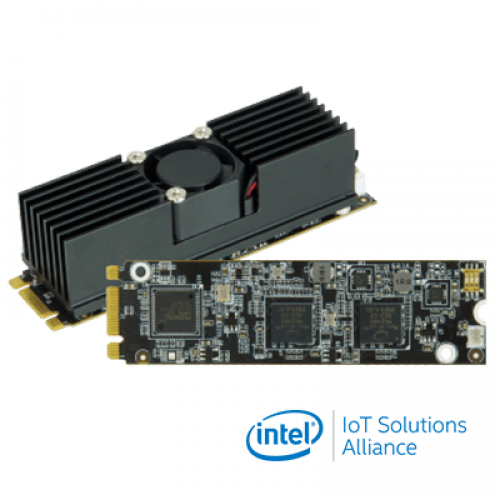

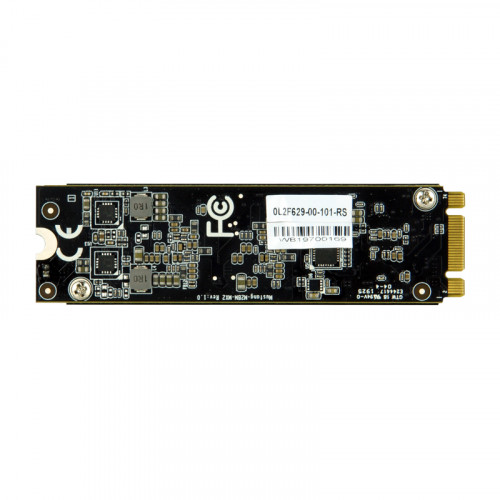

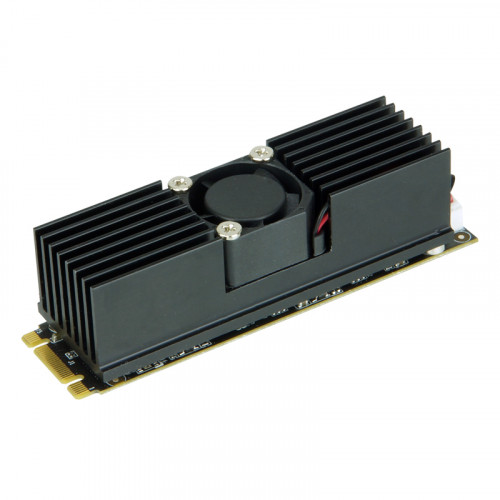

Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22 mm x 80 mm, RoHS
● M.2 BM key form factor (22 x 80 mm)
● 2 x Intel® Movidius™ Myriad™ X VPU MA2485
● Power efficiency, approximate 7.5W
● Operating Temperature -20°C~60°C
● Powered by Intel's OpenVINO™ toolkit
| Spec Item | Description |
|---|---|
| System | |
| Chipset | 2 x Intel® Movidius™ Myriad™ X MA2485 VPU |
| Cooling method / System Fan | Active Heatsink |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 22 X 80 |
| Power | |
| Power Consumption | Approximate 7W |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 90% |
| Card Slot Interface | |
| M.2 | BM Key |
| Item No. | Description |
|---|---|
| Mustang-M2BM-MX2-R10 | Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22mmx80mm, RoHS |
