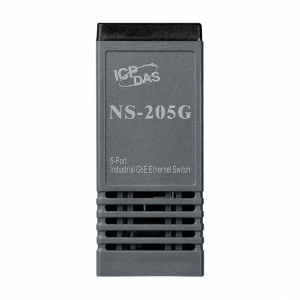

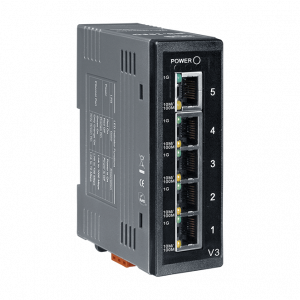

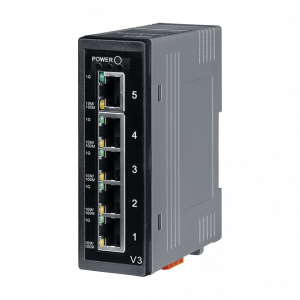

The NS-205G is 5-port unmanaged gigabit switches that support 10/100/1000 Base-T, with a 10/100/1000M auto negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps or 1000 Mbps) for corresponding connections.
That is an ideal solution for bandwidth-hungry applications (such as high resolution digital image transmission, video/audio file streaming/downloading, and server farm connectivity).
The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting.
| LED Indicators |
| Status |
Power, 1000M, Link/Act |

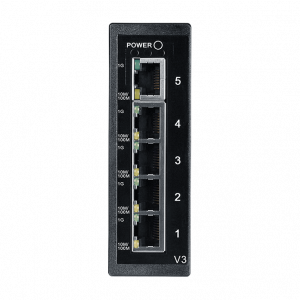

| Ethernet |
| Ports |
5 x RJ-45, 10/100/1000 Base-T |
| Standards |
IEEE 802.3, 802.3u, 802.3ab and 802.3x |
| Processing Type |
Store & forward |
| MAC Table |
4096 |
| Frame Buffer Memory |
1.5 Mbit |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| Jumbo Frames |
9 K for Speed 1000 M |
| Isolation |
1500 Vrms 1 minute |

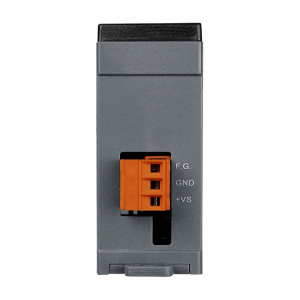

| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC (Non-isolated) |
| Consumption |
0.2 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 107 x 78 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-40 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
