Dual Full-length GPU Expandable Computer
GPUs have evolved—and AI processing, simulation, and 3D graphics rendering have all benefited. Now, powerful GPU-based acceleration is baked into edge computing solutions to provide intensive processing parallelism and performance-driven analytics not possible with traditional PCs. Only these GPU systems can provide the real-time decision-making, predictive analytics, and optimized control at the edge needed to achieve the high efficiency and growth required for industrial operations. Powerful GPU computing drives these applications and necessitates dedicated robust hardware to provide processing and inferencing capabilities.
Cincoze is a professional provider of highly reliable and rugged embedded systems to support customers in the industrial field. Deploying our rugged, high-performance GP-3000 machine vision computer provides the power to manage the most complex artificial intelligence and machine vision workloads.

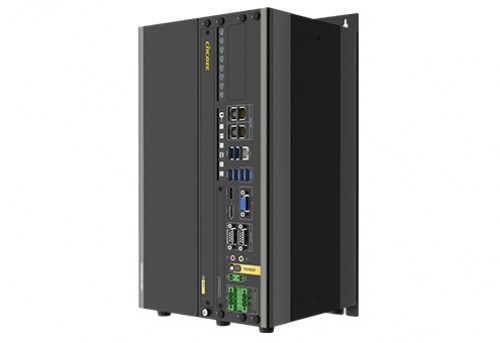

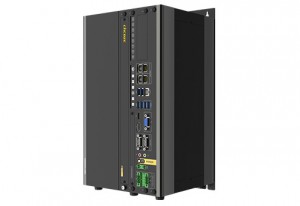

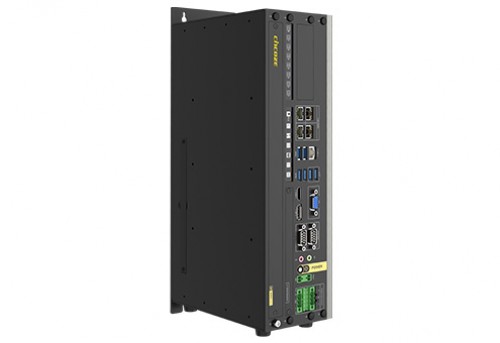

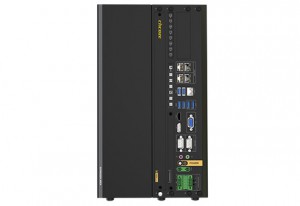

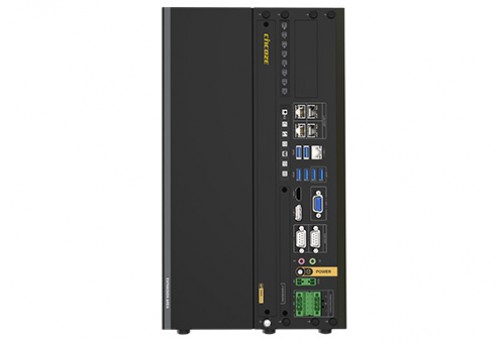

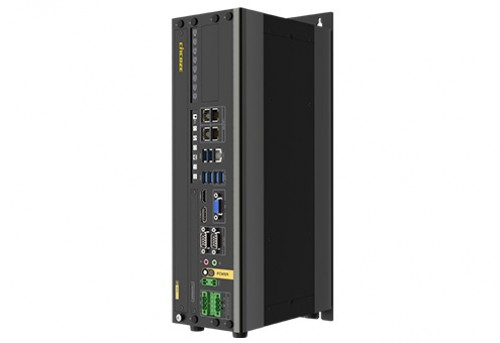

The GP-3000 is powered by a 9th generation Intel® Xeon®/Core™ processor and supports up to two 250 W high-end graphics cards adding blazing-fast performance for AI, machine learning, machine vision, and big data analysis. 9th generation Intel® processors are up to 34% percent faster than the previous generation. GP-3000 supports two ECC or non-ECC DDR4-2666 (up to 64 GB) for exceptional speed and responsiveness. The GP-3000 is one of the most formidable industrial AI and machine vision computers available today.
——

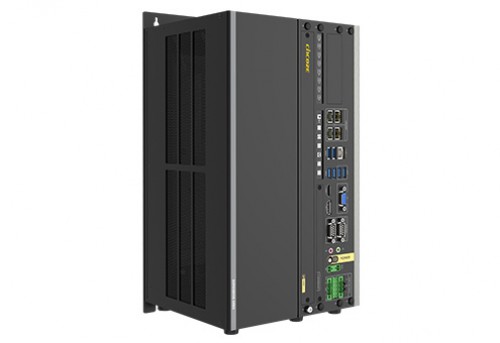

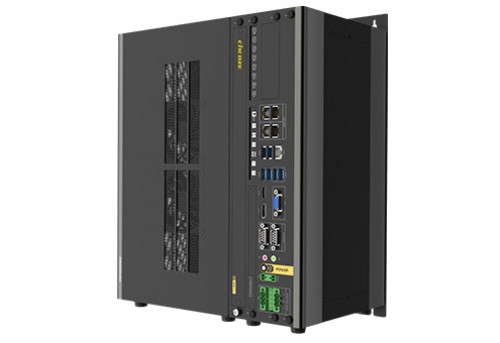

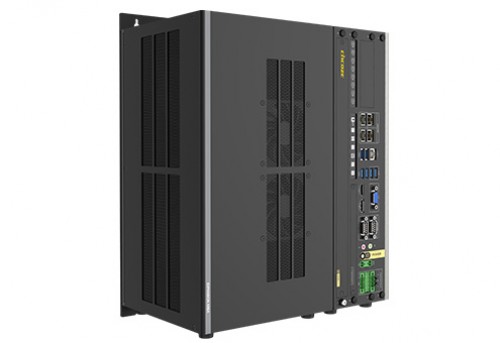

The GP-3000 provides an exclusive GPU Expansion Box (GEB), a scalable GPU solution for performance upgradability and flexibility. It supports the expansion of up to two 250 W 328 mm full-length graphics cards in the market. GP-3000 is the core processing unit, and a single- or dual-GPU GEB connects externally to add GPU processing power and other PCIe add-on cards.
——
GP-3000 has a 720 W total system power budget and supports a wide range DC power input from 9 to 48 V for high-end GPU computing. GP-3000 can power up to 500 W for its GEB with its specialized power design, ideal for dual 250 W graphics cards.
——

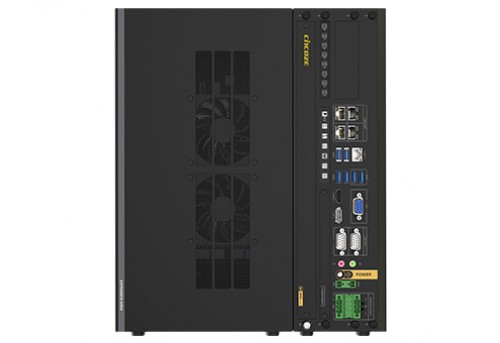

Better performance, higher power requirements. To solve the power consumption and thermal challenges, the GP-3000’s mechanical structure and isolated external smart fan kits on both sides of the chassis effectively dissipate heat under full workloads in extreme conditions.
——

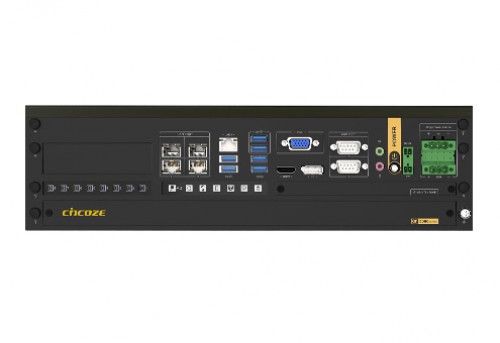

GP-3000 has multiple native I/O interfaces built-in. Cincoze’s proprietary CMI/CFM modules offer customization for additional I/O or other functionality such as 8x GbE LAN/POE, 6x USB 3.2, and 2x 10 GbE LAN. GP-3000 supports four 2.5" hot-swap SATA SSDs and has one M.2 M key socket for NVMe SSD storage.
——
GP-3000 packs versatility and performance into a robust design for ultimate GPU computing. GP-3000 has passed a series stringent quality assurance tests and industry standards including MIL-STD-810G military standard, E-mark for in-vehicle applications and EN50155 (EN 50121-3-2 only) for rolling stock environments. It can withstand hot and cold temperature extremes, shock and vibration, and high electromagnetic radiation.
